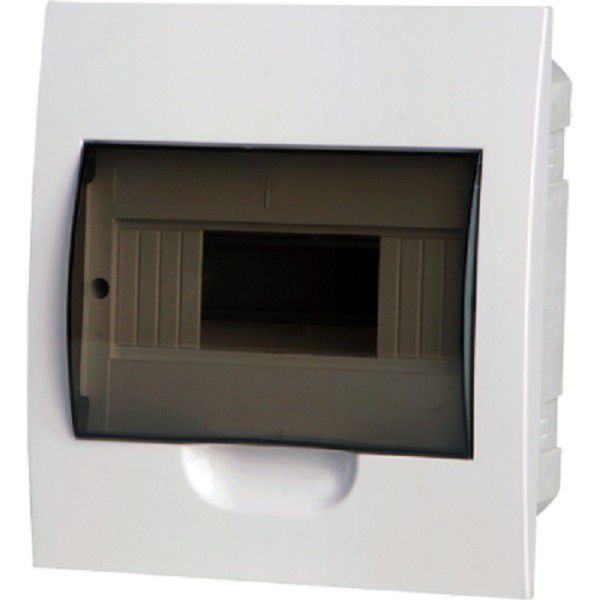

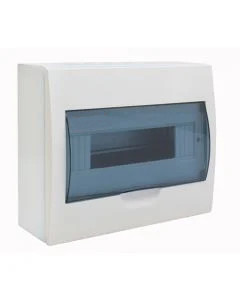

Distribution Board PVC Flush DB 12Way Empty
Description:
Electrical distribution board colloquially called DB is required for each and every installation that has electrical power supply.
It comes in various configuration. Small house or office may require as small as 6 or 8way while large one might need up to 36way.
The DB is made to fit MCB, ELCB that complies to latest IEC-947-2 and DIN standards which is followed globally.
The circuit breaker that fits in these DB’s are full 35mm DIN Rail and not half DIN rail which was followed previously.
These are made of High grade insulating plastic which is flame retarding in nature
Specifications
- Construction material – PVC enclosure, Brass connection links, Steel DIN rail
- Suitable voltage – 220 to 240V AC
- Mounting – Flush/ Recessed (Inside the wall)
- Incoming – Top or bottom
- Outgoing – Top or bottom
- Earth Connection – earth link is provided
Package contains – 12Way Flush mount DB Empty

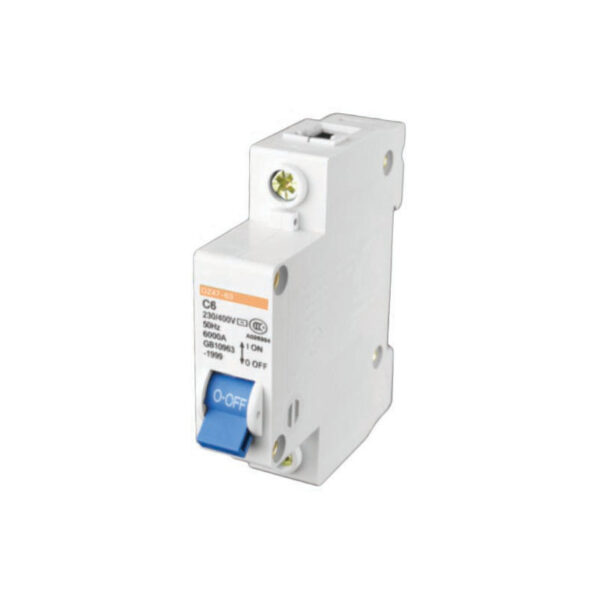

Also look at Easy Connect DIN Rail MCB 35mm
